VOICE-SERIES®

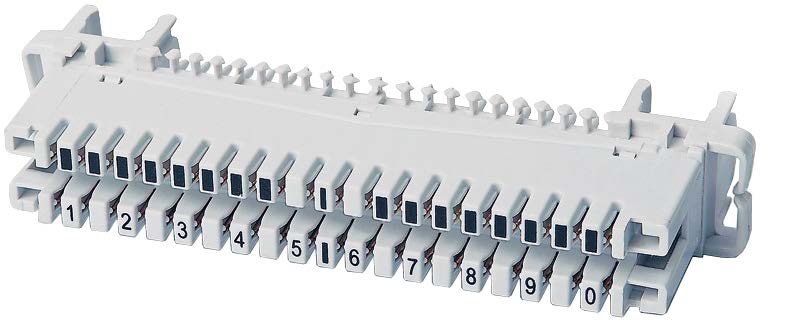

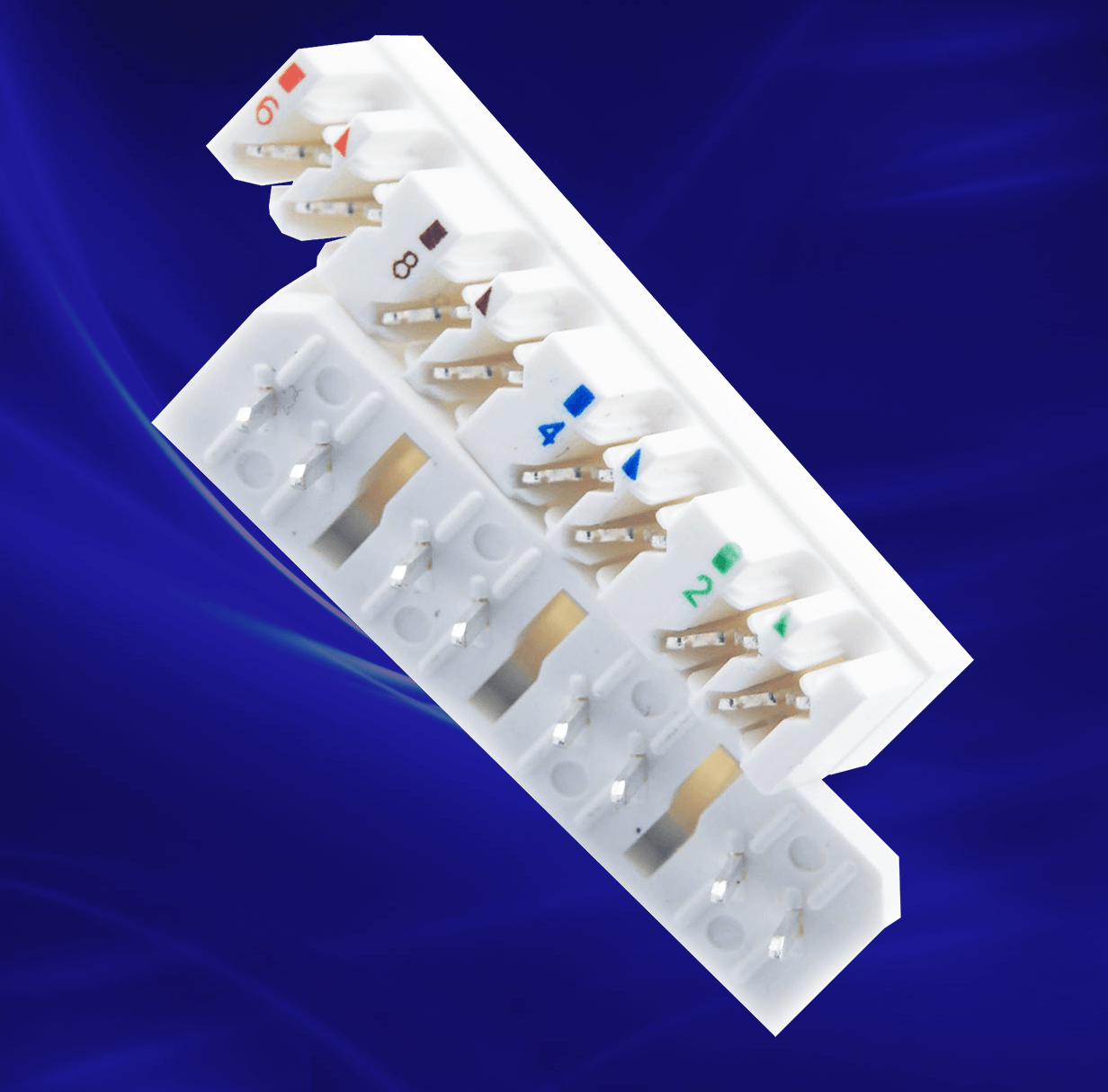

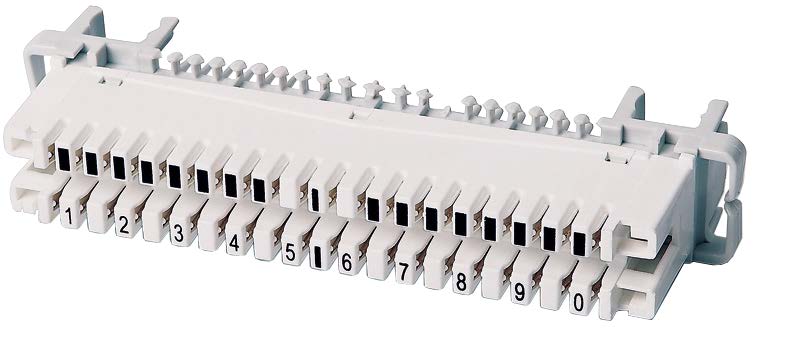

VOICE SERIES® LSA
Punch Down Blocks.LSA
Technical Specification:
Electrical:
Voltage Rating: 250VDC
Current Rating: 1,5A
Contact Resistance: 10 mΩ max.
Insulation Resistance: 1.000MΩ min. @ 500VDC
Dielectric Strength: 1.000 VAC, 60Hz, 1min.

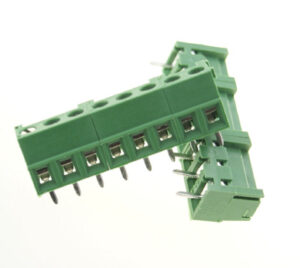

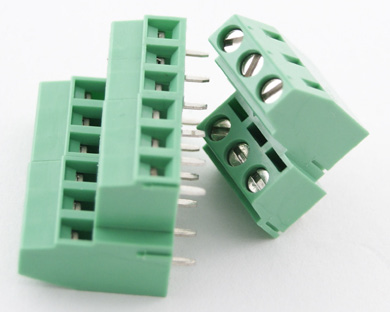

VOICE SERIES® ST
Screw terminals with various Pitches.
3.5mm is the most common pitch other available pitches: 3,81mm, 4,5mm, 5,08mm, 6,35mm & 10.16mm
Material:
Contact: Phosphor Bronze Ni plated or stainless steel
Pin header: Brass Tin plated
Housing: PBT, UL94V-0
Screw: Steel Zinc plated
