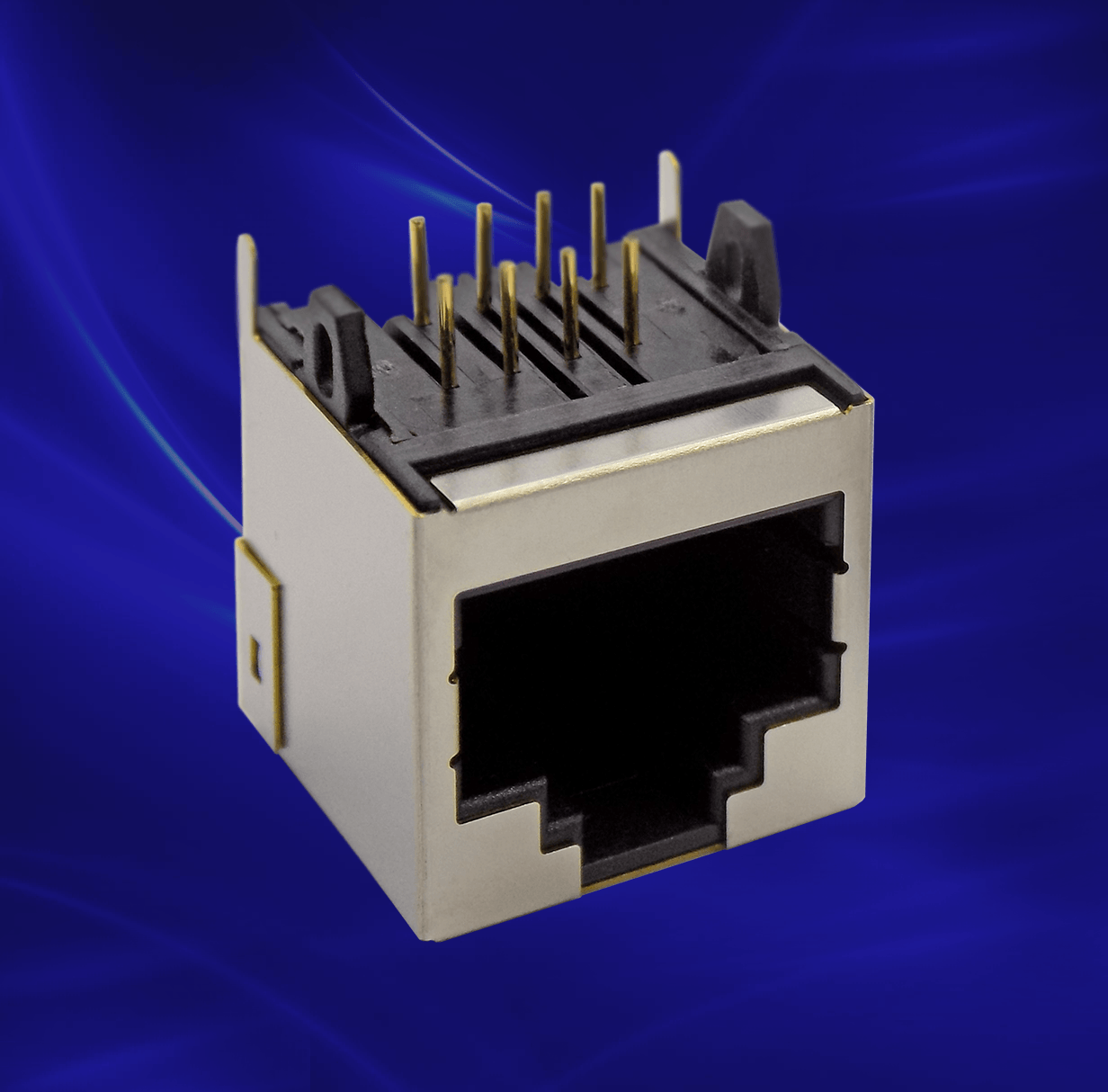

Shielded and unshielded modular jacks in THT and THR
Insulation Resistance 1.000 MΩ
Contact Resistance 20 mΩ
Voltage Rating 150 V AC RMS
Current Rating 1,5 A
Withstanding Voltage 1.000 V AC/min
Durability 750 Mating Cycles
Selective Gold Plating 3μ”, 6μ“, 15μ”, 30μ”, 50μ”
Blades Phosphor Bronze with Gold Plating on Nickel
Housing Polycarbonate, UL 94 V-0
Operation Temperature -40°C .... +85°C
Mates with Modular Jack conforming to TIA-1096-A
